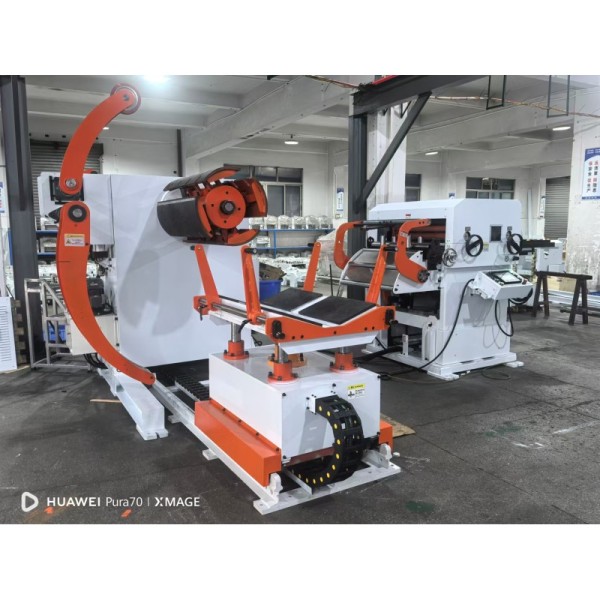

High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal

power(w) : 1500

core components : PLC, Engine, Bearing, Motor

Feeding Speed : 15 m/min

Pass line adjustment : 50mm

Item name : Pneumatic & Mechanical Feeding Straightening feeder

MOQ : 1

video outgoing-inspection : Provided

Price : $5,148/cases 1-4 cases

Certification : CE / ISO14001

Supply Ability : 30 Sets/Month

machinery test report : Provided

type : Feeder Machine

Brand Name : QIAOSEN

voltage : 380

Width of material : 600mm

use : Sheet

weight (kg) : 200

place of origin : Guangdong, China

brand name : Qiaosen

warranty : 1 Year

Releasing system : Pneumatic type

Place of Origin : China

Power supply : AC380V/3phase

Feeding length : 0.01-9999.99mm

Payment Terms : T/T

Roll pressure : Spring type

Keyword : Straightening feeder

Feeding capacity : 300W*2.3T

Thickness of material : Max 3.2mm

key selling points : Easy To Operate

Contact Now

NC-300 NC-600 Automatic Pneumatic Servo Sheet Metal Coil Strip Punching Press Feeder Machine Core Motor Straightening Machinery
Product Overview
Servo Roller Feeder Punching Press Automatic Pneumatic & Mechanical Feeding Straightening feeder
Technical Specifications
No Item Data
1 Width of material AC380V/3phase
2 Thickness of material MAX3.2
3 Feeding Capacity 300W*2.3T, 80*3.2T
4 Feeding length 0.01-9999.99
5 Roll pressure Spring type
6 Releasing system Pneumatic type
7 Pass line adjustment 50mm
High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal
Key Features
  • Can feed material for various thicknesses and feeding stroke lengths
  • Suitable for high-speed feeding and long stroke length feeding to improve production capacity and feeding precision
  • User-friendly operation panel for freely inputting feeding length and speed numbers (range: 0.01mm-9999.99mm)
  • Pneumatic cylinder releasing method without malfunction
  • Mechanical releasing method available according to customer requirements
  • High precision feeding: ±0.02mm
  • Supports 5 sets of different feeding lengths with up to 999 strokes quantity per length
  • Normal manual running mode with manual speed for easy steel material feeding to stamping mould
  • High effective releasing device based on press machine's cam position electronic signal and steel material thickness
  • Touch screen input for feeding length numbers
  • Hollow feeding roller with surface hardness HRC60 and chrome plating
Structural Design
  • High quality servo motor for efficient feeding testing time reduction
  • High-sensitivity encoder for accurate feedback and improved feeding precision
  • Quality belt system to avoid gears gap, gear abrasion, noise-free operation, no lubrication required, safe and environmentally friendly
  • Internally installed motor structure to prevent possible damages
High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal
Similar Products
High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal
Company Profile
Dongguan Qiaosen Machinery Co., Ltd, with our own factory located in Jiangsu province, was established in 2016. Conveniently located near Shanghai city with excellent transportation access, we are a hub of creative minds and gifted talents. Our factory was among the first to pass the ISO9001:2008 quality management system certification.
We specialize in the production of hydraulic press machines, offering main products ranging from 10 tons to 2000 tons with 8 series and over 100 types. Our product line includes single column, four column, C frame, H frame, and various press machines, punching machines, folding machines, and cutting machines used in aviation, aerospace, automobile, shipbuilding, light appliances, daily hardware, and more.
Our company products are known for exquisite design, reasonable pricing, excellent quality, and efficient after-sales service with technical support. We have received recognition from customers worldwide, selling well in over 20 domestic provinces and cities, and exporting to the United States, Japan, Russia, European Union, Southeast Asia, the Middle East, and other countries.
High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal
Product Packaging
High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal
